A/V media room processing shelf v 2.0:An HDFury Diva takes four 4k HDMI signals, routes them to a 4k display, from which it can capture ARC and eARC, and sends a 1080p HDMI signal with audio to an HDMI to 3G SDI converter. This is then routed to an AJA 3G-AM digital audio deembedder/embedded to process the audio. After processing the audio over 3G SDI goes to a 3G SDI to HDMI converter and then off-shelf to the HDMI input of an Oppo 205 4k Blu-ray player for D/A conversion, level trim, speaker distance adjustment and volume control before hitting the Apollon power amps for a 7.2 surround sound system.The 3G SDI to HDMI converter has a loop through which feeds a second digital audio deembedder which is used to drive a Lucid Symmetric 8824 AD/DA converter used as just a level meter.The audio from the AJA 3G-AM is routed through a miniDSP DDRC-88D for bass management and Dirac Live room correction.
In Album: Rene Hollan's Timeline Photos
Dimension:
4000 x 3000
File Size:
203.04 Kb
Like (1)
Loading...
Rene Hollan

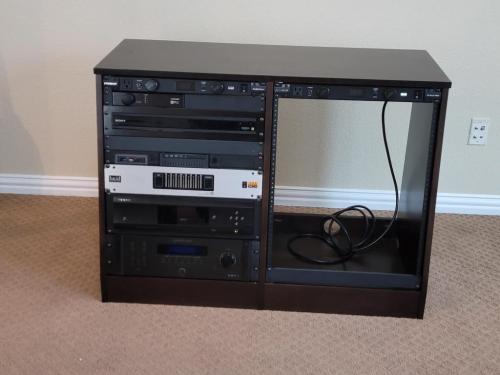

Source side of the A/V rack filled:
Top to bottom: Furman power conditioners and distribution panel (both sides), miniDSP DDRC-88D bass management and Dirac Live room correction from theater sources, Sony 4k Blu-ray player for movies (run through bass management and Dirac Live, processing shelf, co... View More
Rene Hollan

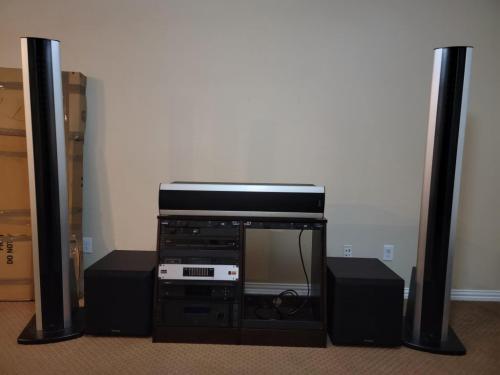

Front speaker and subwoofer array. Just need my Apollon amps (I will not insult my Oppo with my old Crown amps).
